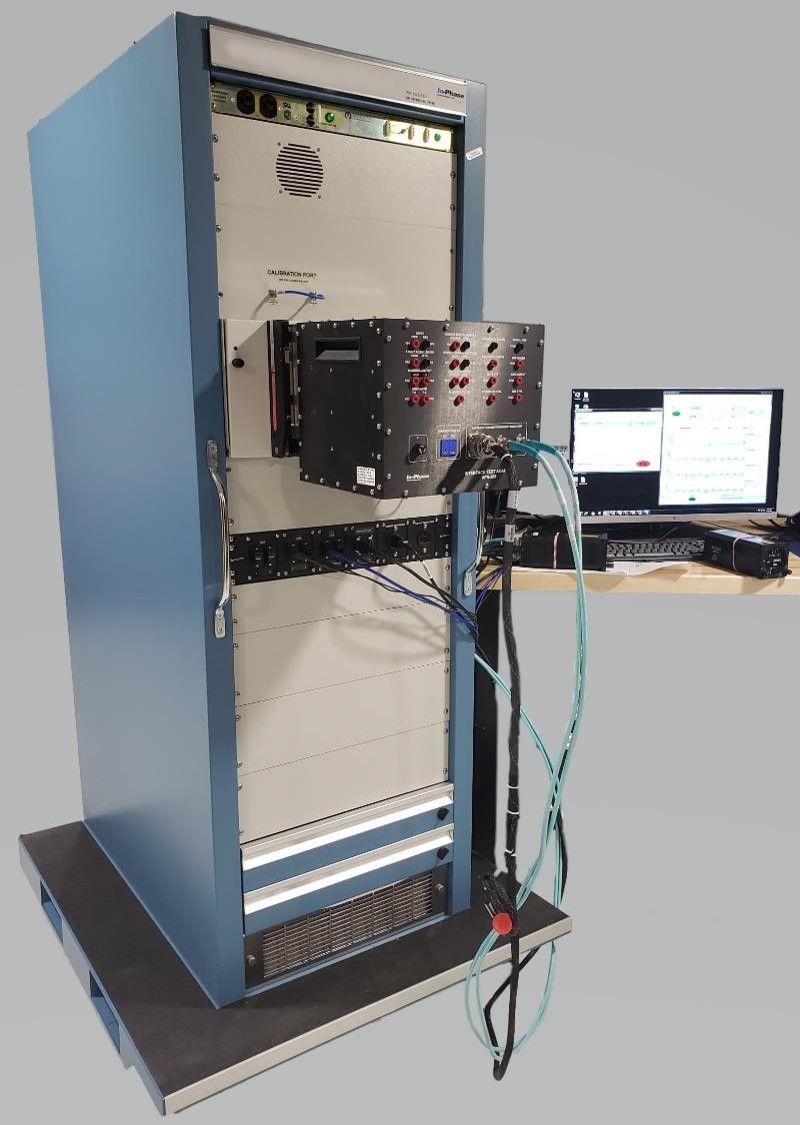

Full Transceiver Core Test Set


Call 609.298.9555 for pricing

June 4, 2019 In-Phase Technologies announces four new Core Test Sets, the first commercial test sets of this type available to the high-frequency ATE market. Analog and digital test systems are already embracing the new concept of Core Test Sets. Core Test Sets save money through their ease of configurability. Now it’s time for the microwave and RF Automated Test Equipment (ATE) community to do the same, to meet a gap in the industry.

** Pre-configured Core Test Systems cut development time in half**

With In-Phase Technologies’ pre-configured Core Test Sets, test engineers will cut test set development time in half. They also save on development time, manufacturing, and documentation costs. In-Phase assures total system signal integrity among all pre-configured building blocks.

New Core Test Sets:

  • Analog/Digital Core Test Set (#1342649) tests avionics products, power supplies, LCR measurements, low frequency boards (<1 GHz), electronic loads, etc.
  • Full Transceiver Core Test Set (#1342650) tests digital or analog radios, radars, altimeters, frequency translators, and components
  • Amplifier Core Test Set (#1342651) tests high power amplifiers, low noise amplifiers, medium power amplifiers, frequency translators, and components
  • Transmitter Core Test Set (#1342652) tests all types of transmitters from analog to digital modulation
  • Receiver Core Test Set (#1342653) tests all types of receivers, including analog and digital modulation

These fully developed systems can cross your entire enterprise, being fully reusable, documented, and obsolescent-resistant.

WHAT ARE CORE TEST SYSTEMS?

An In-Phase Technologies Core Test Set provides a pre-engineered, integrated hardware framework to build a unique test set, and includes:

  • Set of COTS test equipment in an enclosure, with power and wire management systems, proper air flow, and coiling
  • High density interface with pre-defined signal points
  • LabVIEW instrument drivers designed for hardware abstraction

The system comes with a complete documentation package for importing your company’s configuration-controlled system. Just design and manufacture the Interface Test Adapter (ITA) to interface to the Unit Under Test (UUT). Write test and measurement routines using instrument calls from In-Phase’s hardware abstraction layer driver library, and start testing!

SAVE:

  • Development TIME
  • Development COST
  • Manufacturing TIME
  • Manufacturing COST
  • Documentation TIME
  • Documentation COST

Tests digital or analog radios, radars, altimeters, frequency translators, and components
